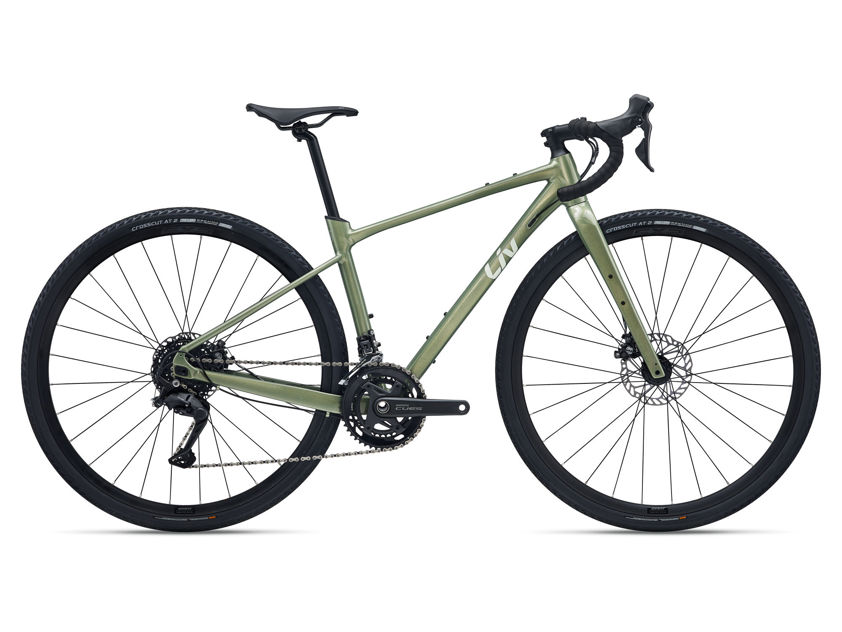

THE DEVOTE WAS DESIGNED TO SATISFY YOUR GRAVEL WANDERLUST. BALANCING PERFORMANCE AND RUGGEDNESS, THIS VERSATILE BIKE IS READY FOR ANYTHING FROM SHORT CUTS THROUGH THE WOODS TO LONG, WINDING TRAILS, AS WELL AS CRUSHING YOUR FIRST GRAVEL RACE.
KEY PERFORMANCE FACTORS
Lightweight and Sleek
The durable yet lightweight ALUXX-grade aluminum frame with an Advanced-grade composite fork offer a smooth and forgiving ride, handy when you find yourself on the road less traveled. The redesigned geometry puts you in a more performance-oriented position and gives you added control whether you’re picking up speed or detouring downhill to the swimming hole.
Superior Comfort and Control
The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for a comfortable and ergonomic grip. The Contact D-Fuse seatpost can be swapped out for a 30.9mm or 27.2mm round seatpost. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.
Unmatched Versatility
Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction.
SPECIFICATIONS
- SizesXS, S, M, L
- ColoursGleaming Olive
- FrameALUXX-grade aluminum, 12x142mm thru-axle, flat mount disc, flip chip – dropout
- ForkAdvanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, flat mount disc
- HandlebarGiant Contact XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, XS: 400mm, S: 400mm, M: 420mm, L: 420mm
- StemGiant Contact, 8-degree, XS: 50mm, S: 60mm, M: 70mm, L: 80mm
- SeatpostGiant D-Fuse, alloy
- SaddleLiv Grit
- PedalsPEDALS NOT SUPPLIED
- ShiftersShimano CUES U3030, 2x9
- Front DerailleurShimano CUES U6030
- Rear DerailleurShimano CUES U4020
- BrakesShimano Mechanical Disc Brake BR-RS305 SUPER SLR, [F]160mm, [R]160mm
- Brake LeversShimano CUES BR-U3030
- CassetteShimano CS-LG300, 11x36
- ChainKMC X11 with Missing Link
- CranksetShimano FC-U6030, 32/46, XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm
- Bottom BracketShimano, press fit
- RimsGiant S-X2 Disc, alloy
- HubsGiant alloy, 12mm thru-axle
- Spokesstainless steel
- TyresCrossCut GRIP 1; 700x45c
- Extrastubeless prepared, ISC clamp
- Max Tyre Clearance53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 150 cm
163 cm
- S
- 158 cm 169 cm
- M
- 164 cm 175 cm
- L
- 170 cm 181 cm
