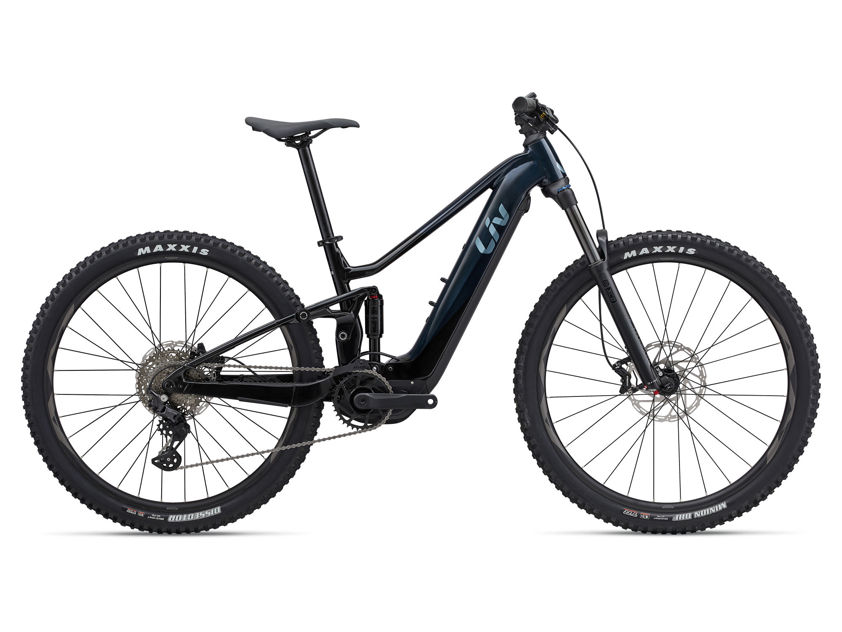

FEEL THE RUSH ON THE EMBOLDEN E+. A FULL-SUSPENSION ELECTRIC MOUNTAIN BIKE DESIGNED TO HELP YOU SHRED DEMANDING TRAILS, BREEZE THE CLIMBS AND CONQUER OBSTACLES WITH CONFIDENCE. NOTHING IS OFF-LIMITS NOW.
KEY PERFORMANCE FACTORS
Capable and Fun
The high-performing Embolden E+ provides an exhilarating ride. It has a maximum range of 180km, loads of travel (140mm front, 125mm rear), and a powerful motor (75Nm of torque). Epic mountain biking, trekking, and touring adventures are now well within your capabilities.
Versatile for Multi-Usage
The Embolden E+ is your new secret weapon. With its 140mm front/125mm rear suspension, integrated kickstand, fender mounts, and carrier compatibility, this E-bike is ready to tackle challenging technical trails and tick off your bucket list of touring and trekking adventures.
Premium, Integrated Design
This E-bike brings head-turning wow factor to the trails thanks to its internally routed cables, smooth and simple frame lines, and attractive colour and graphics. Additionally, the lower standover height makes it easy to get on and off.
SPECIFICATIONS
- MotorSyncDrive Sport2, 75Nm, powered by Yamaha, PedalPlus 6-sensor technology
- BatteryEnergyPak 625Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, EnergyPak Plus 250 range extender compatible
- ControllerRideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W)
- DisplayRideControl Dash, high-angle visibility, full color LCD display
- SizesS, M, L 29"
- ColoursCosmos Navy
- FrameALUXX SL-grade aluminium, 1.5"~1.8" head tube,125mm travel FlexPoint suspension system, 'Boost' 148x12 UDH rear axle, EnergyPak Plus Range Extender Compatible
- ForkSR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle
- ShockSR Suntour Raidon R, 190x45mm, custom tuned
- HandlebarGiant Connect TR Riser 31.8x750mm (S), 780mm (M-L)
- StemGiant Contact
- SeatpostGiant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
- SaddleLiv sylvia E
- PedalsAluminium Platform
- ShiftersShimano Deore LinkGlide
- Front DerailleurMRP HD2 co-moulded chain guide
- Rear DerailleurShimano Deore LinkGlide, 10-speed
- BrakesTektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm
- Brake LeversTektro HD-M745 Orion
- CassetteShimano CS-LG400-10, 11-43T, 10-speed LinkGlide
- ChainShimano, LinkGlide, CN-LG500
- CranksetFSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
- Bottom Bracketn/a
- RimsGiant AM 29" Tubeless ready, 30mm inner width
- HubsGiant eTracker Boost, [F] 110x15 [R] 148x12mm
- SpokesStainless Steel
- TyresMaxxis Minion DHF 29X2.50"" Foldable, TLR, EXO, 60TPI [F] Maxxis Dissector 29X2.40"" Foldable WT, TLR, EXO, 60TPI [R]
- Extras-
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
- XS
- 150 cm
163 cm
- S
- 155 cm 172 cm
- M
- 164 cm 175 cm
- L
- 170 cm 181 cm
